How to Use Icons

Some Swing components, such as JLabel and JButton, can be decorated with an icon -- a fixed-sized picture. An icon is an object that adheres to the Icon(in the API reference documentation) interface. Swing provides a particularly useful implementation of the Icon interface: ImageIcon(in the API reference documentation), which paints an icon from a GIF or JPEG image.

Here's a snapshot of an application that decorates two labels with an icon:

An example of using image icons to decorate labels.

The program uses one image icon to contain and paint the yellow splat. One statement creates the image icon and two more statements include the image icon on each of the two labels:
ImageIcon icon = new ImageIcon("images/middle.gif",
                               "a pretty but meaningless splat");
...
label1 = new JLabel("Image and Text", icon, JLabel.CENTER);
...
label3 = new JLabel(icon);
The first argument to the ImageIcon constructor specifies the file to load, relative to the directory containing the application's class file. The second argument provides a description of the icon, to be used by assistive technologies. This description might be used, for example, to help a visually impaired user understand what information the icon conveys.

Applets generally load image data from the computer that served up the applet. There are two reasons for this. First, untrusted applets can't read from the file system on which they're running. Second, it just makes sense to put an applet's class and data files together on the server. To load image data from the server, an applet uses a URL as shown in the following example:

public class SomeClass extends JApplet ... {
    protected String leftButtonFilename = "images/left.gif";
    ...
    public void init() {
        ...
        URL leftButtonURL = getURL(leftButtonFilename);
        ...
        leftButtonIcon = new ImageIcon(leftButtonURL,
                                       "an arrow pointing left");
        ...
    }
    ...
    protected URL getURL(String filename) {
        URL codeBase = getCodeBase();
        URL url = null;

        try {
            url = new URL(codeBase, filename);
        } catch (java.net.MalformedURLException e) {
            System.err.println("Couldn't create image: " +
                               "badly specified URL");
            return null;
        }

        return url;
    }
    ...
}
If you're writing an applet, you might want to copy the getURL method for use in your applet. For more information on specifying the source of image data, see Specifying the Image Source.

When you specify a filename or URL to an ImageIcon constructor, the constructor returns only after the image data is completely loaded. Thus, you can be sure that the image icon is usable following the call to the constructor. If you want more information while the image is loading, you can register an observer on an image icon by calling its setImageObserver method.

Under the covers, each image icon uses an Image(in the API reference documentation) object to hold the image data and a MediaTracker(in the API reference documentation) object, which is shared by all image icons in the same program, to keep track of the image's loading status. If you're curious about Image objects, image observers, media trackers, and other image topics, see Using Images(in the Creating a User Interface trail).

The rest of this section covers the following topics:

A More Complex Image Icon Example

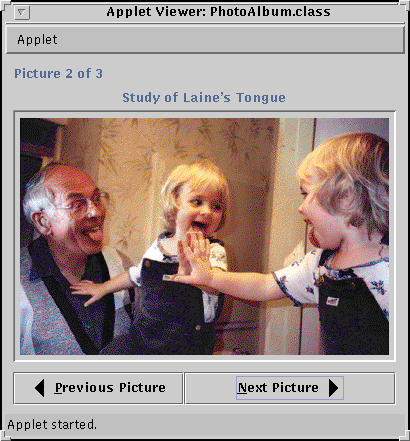

Here's an applet that uses eight image icons. In the snapshot, you can see three of them: one displays the photograph and two decorate the buttons at the bottom of the applet window with small arrows.

Click this figure to run the applet.
This is a picture of the applet's GUI. To run the applet, click the picture. The applet will appear in a new browser window.

Try this:
  1. Run the applet. For information on running applets, see Running Swing Applets.
    The main source code for the program is IconDemoApplet.java. You will also need a few other source files and several image files. See the examples index for links to all the files required by this example.
  2. Click the Previous Picture and Next Picture buttons to view the photographs.
  3. Hold the mouse over a photograph. A tool tip appears that indicates the filename of the current photograph and its width and height.
  4. To view your own photographs, modify the applet parameters. Here's the applet tag used for the applet running above:
    <applet code="IconDemoApplet.class"
        codebase="example-swing/"
        archive="icon.jar"
        width="400" height="360">
    <param NAME="IMAGEDIR" VALUE="images">

    <param NAME="IMAGE0" VALUE="stickerface.gif">
    <param NAME="CAPTION0" VALUE="Sticker Face">
    <param NAME="WIDTH0" VALUE="230">
    <param NAME="HEIGHT0" VALUE="238">
    ...
<applet>
    The IMAGEDIR parameter indicates that the image files should be in a directory named images relative to the applet's codebase. Four parameters are required for each photograph and the applet uses four photographs. The tag shown above shows the parameters for only the first photograph.

Specifying the Image Source

Most often, an image icon's data comes from an image file. You can specify the location of the file with either a filename or a URL(in the API reference documentation) object. For applications, the filename or URL is generally relative either to the directory containing the application's class files, or to the class path. Applets generally use a URL that is constructed relative to the applet's code base (the directory containing the applet's class files).

You've already seen how to specify a filename relative to the directory containing the application's class files. To specify a URL relative to an application's class path, you can use the ClassLoader(in the API reference documentation) getSystemResource method. Here is an example:

ImageIcon icon = nulll;
URL iconURL = ClassLoader.getSystemResource("images/middle.gif");
if (iconURL != null) {
    icon = new ImageIcon(iconURL,
                         "a beautiful yet meaningless icon");
}
The getSystemResource method looks through the directories and JAR files in the program's class path, returning a URL as soon as it finds the desired file. [PENDING: if you add a directory (other than the directory the application came from?), it doesn't seem to look in it.] For example, assume that you put a JAR file named icons.jar in your program's class path. If the JAR file contains images/middle.gif, then the class loader will definitely return a URL for images/middle.gif. However, the URL might not be relative to icons.jar, if another JAR file or directory in the class path contains images/middle.gif. The URL will point to the first JAR file or directory in the class path that contains images/middle.gif.

The IconDemoApplet program initializes each of its image icons from GIF files whose locations are specified with URLs. Because IconDemoApplet is designed to be an untrusted applet, we must place the image files under the applet's code base. The following figure shows the locations of files for IconDemoApplet.

                code base
                   |
           +-------+------------+
           |                    |
         applet           image directory
     .class files    (specified by IMAGEDIR parameter)
                                |
                             image files
[PENDING: replace ASCII diagram with real one similar to the one that appears in Finding and Loading Data Files.]
Note:  Applets are supposed to be able to load images from JAR files. Currently, however, some browsers can't read images from a JAR file, although they do successfully get classes from a JAR file. With our applets, we currently hedge our bets by both putting the image files in the applet's archive file (the JAR file containing the applet's class files) and by putting the image files in the file system on the server. Here's a picture of our setup:
                code base
                   |
           +-------+------------+
           |                    |
         JAR file           image directory
         --------               |
     .class files           image files
     image directory
    (with image files)
[PENDING: draw a circle around the image directory/files on the right, and say "These can be deleted if the applet can load image files from the JAR file."]

Improving Perceived Performance When Loading Image Icons
Because the photograph images are large and because the applet uses multiple images, IconDemoApplet uses several techniques to improve the performance of the program as perceived by the user. As with all performance-related issues, these techniques work in some situations and not others. These are not general recommendations for all programs, but some techniques you can try to improve the user's experience. Furthermore, the techniques described here are designed to improve the program's perceived performance, but don't necessarily impact its real performance.

Creating a Custom Icon Implementation

If you use a simple image repeatedly, consider implementing a custom Icon class to paint the image. The really nice thing about a custom icon is that you can easily change the icon's appearance to reflect its host component's state.

Look-and-feel implementations often use custom icons. For example, the Metal Look & Feel uses a single MetalCheckBoxIcon object to paint all of the check boxes in the GUI. The MetalCheckBoxIcon paints itself differently depending on whether its host component is enabled, pressed, or selected.

In this section, we'll convert a program called ButtonDemo so that it uses a custom icon to paint these two arrows:

A simple left arrow A simple right arrow
You can see a picture of ButtonDemo in How to Use the Common Button API(in the Creating a User Interface trail). Its source code is in ButtonDemo.java. ButtonDemo uses the following code to load the arrows from GIF files and put the arrows into buttons:
ImageIcon leftButtonIcon = new ImageIcon("images/right.gif");
...
ImageIcon rightButtonIcon = new ImageIcon("images/left.gif");

b1 = new JButton("Disable middle button", leftButtonIcon);
...
b3 = new JButton("Enable middle button", rightButtonIcon);
Here is the new code, which uses a custom icon class named ArrowIcon. Only the bold lines have changed. You can find the entire program in CustomIconDemo.java.
Icon leftButtonIcon = new ArrowIcon(SwingConstants.RIGHT);
...
Icon rightButtonIcon = new ArrowIcon(SwingConstants.LEFT);

b1 = new JButton("Disable middle button", leftButtonIcon);
...
b3 = new JButton("Enable middle button", rightButtonIcon);
You can find the implementation of the custom icon class in ArrowIcon.java. Here are the interesting parts of its code:
class ArrowIcon implements Icon, SwingConstants {
    ...
    public void paintIcon(Component c, Graphics g,
                          int x, int y) {
        int length = xPoints.length;
        int adjustedXPoints[] = new int[length];
        int adjustedYPoints[] = new int[length];

        for (int i = 0; i < length; i++) {
            adjustedXPoints[i] = xPoints[i] + x;
            adjustedYPoints[i] = yPoints[i] + y;
        }

        if (c.isEnabled()) {
            g.setColor(Color.black);
        } else {
            g.setColor(Color.gray);
        }

        g.fillPolygon(adjustedXPoints, adjustedYPoints,
                      length);
    }
}
Note that the icon sets the current color. If you don't do this, then the icon's painting might not be visible. For more information about performing custom painting, see Working with Graphics(in the Creating a User Interface trail). The fillPolygon method is discussed in Painting Shapes(in the Creating a User Interface trail).

Using a custom icon to paint the arrows has a few implications:

The Image Icon API

The following tables list the commonly used ImageIcon constructors and methods. Note that ImageIcon is not a descendent of JComponent or even of Component.

The API for using image icons falls into these categories:

Setting, Getting, and Painting the Image Icon's Image
Method or Constructor Purpose
ImageIcon()
ImageIcon(byte[])
ImageIcon(byte[], String)
ImageIcon(Image)
ImageIcon(Image, String)
ImageIcon(String)
ImageIcon(String, String)
ImageIcon(URL)
ImageIcon(URL, String) 		Create a ImageIcon instance, initializing it to contain the specified image. The first argument indicates the source -- image, byte array, filename, or URL -- from which the image icon's image should be loaded. The source must be in a format supported by the java.awt.Image class: namely GIF or JPEG. The second argument, when present, provides a description for the image. The description is a short textual description of the image that could be used in a variety of ways, such as alternate text for the image.
void setImage(Image)
Image getImage()		 Set or get the image displayed by the image icon.
void paintIcon(Component, Graphics, int, int) Paint the image icon's image in the specified graphics context. You would do this only if you're implementing a custom component that performs its own painting. The Component object is used as an image observer. You can rely on the default behavior provided by Component class and pass in any component. The two int argments specify the x and y coordinates, respectively.

Setting or Getting Information about the Image Icon
Method Purpose
void setDescription(String)
String getDescription()		 Set or get a description of the image. This description is intended for use by assistive technologies.
int getIconWidth()
int getIconHeight()		 Get the width or height of the image icon in pixels.

Watching the Image Icon's Image Load
Method Purpose
void setImageObserver(ImageObserver)
ImageObserver getImageObserver()		 Set or get an image observer for the image icon.
int getImageLoadStatus() Get the loading status of the image icon's image. The set of values returned by this method are defined by MediaTracker.

Examples that Use Icons

The following table lists just a few of the many examples that use ImageIcon.

Example Where Described Notes
LabelDemo This section and
How to Use Labels		 Demonstrates using icons in an application's label, with and without accompanying text.
IconDemoApplet This section An applet. Uses a label to show large images; uses buttons that have both images and text.
CustomIconDemo This section Uses a custom icon class implemented by ArrowIcon.java.
TumbleItem How to Make Applets Uses image icons in an animation. Shows how to use ImageIcon's paintIcon method.
ButtonDemo How to Use Buttons, Check Boxes, and Radio Buttons Shows how to use icons in an application's buttons.
CheckBoxDemo How to Use Check Boxes Uses multiple GIF images.
TabbedPaneDemo How to Use Tabbed Panes Demonstrates adding icons to tabs in a tabbed pane.
DialogDemo How to Make Dialogs Shows how to use standard icons in dialogs.
TreeIconDemo How to Use Trees Shows how to change the icons displayed by a tree's nodes.
ActionDemo How to Use Actions Shows how to specify the icon in a tool-bar button or menu item using an Action.
